LF160 Surface Coring Drill Rig
LF160 Surface Coring Drill Rig
The Global Standard in Surface Exploration.
TILTING TOP HEAD DRIVE
The tilting top drive head simplifies rod handling with built-in tools and functionality such as the rod clamp, the spring-loaded floating spindle, and the tilting function of the head.
FOOT CLAMPING AND BREAKING DEVICE
The foot clamp and breaking device is four tools built into one: the lower rod clamp, upper rod clamp, a rod making alignment device, and a rod centralizer.
VISIBLE WIRELINE
Wireline winch is located in front of the mast, inside the rotation barrier for improved visibility. The driller can monitor the wireline spooling from the control panel, avoiding tangling of wire rope typically experienced while lowering overshot.
THE FREEDOM™ LOADER (FL262)
Introducing the FL262, the first product in Boart Longyear’s emerging FREEDOM™ rod loaders, handlers, and presenters. Our cutting-edge range has been engineered with drillers’ safety and productivity front-of-mind.
Features
1. TILTING TOP DRIVE HEAD
The forward tilting head design simplifies the rod handling process and reduces the need for operation intervention and maintenance.
3. CE CERTIFIED
The LF™160 is CE certified according to the latest safety standards.
5. DEPTH CAPACITY
With up to 1,800 meters of NQ™ capability, the LF160 can cover the majority of diamond coring needs.
7. VERSATILITY OF CARRIERS
The LF160 can be ordered in either a crawler or truck mount configuration. The truck mounting is compatible with international 6×4 and Mercedes 8×8 or 6×6 trucks.º
2. NITRO CHUCK™
A hydraulic breaking device means no wrench under power. Rod alignment device and centralizer included.
4. VISUAL WIRELINE
The wireline winch and sheaves are located in the front of the mast, inside the rotation barrier, for improved visibility.
6. ENVIRONMENTALLY CONSCIOUS TIER 3 OR 4 ENGINE
Offered with either a Tier 3 or 4 final engine to comply with emissions requirements in every country.
Downloads

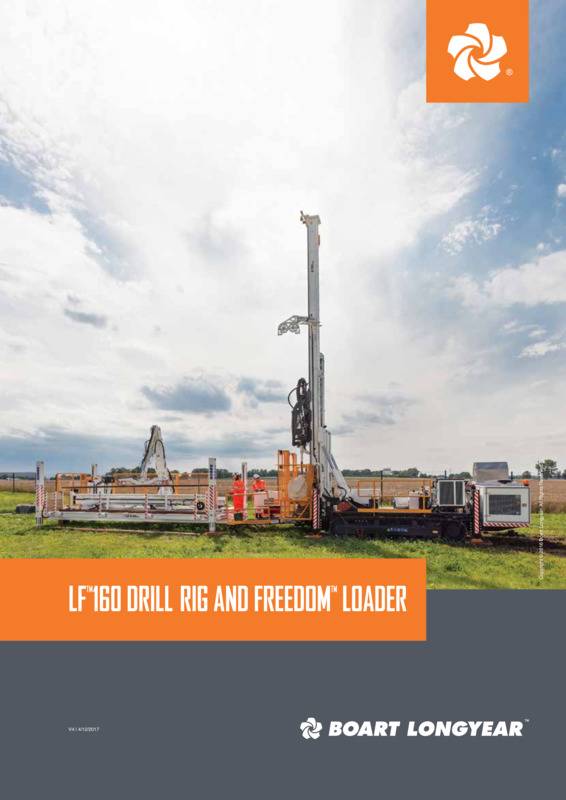

English

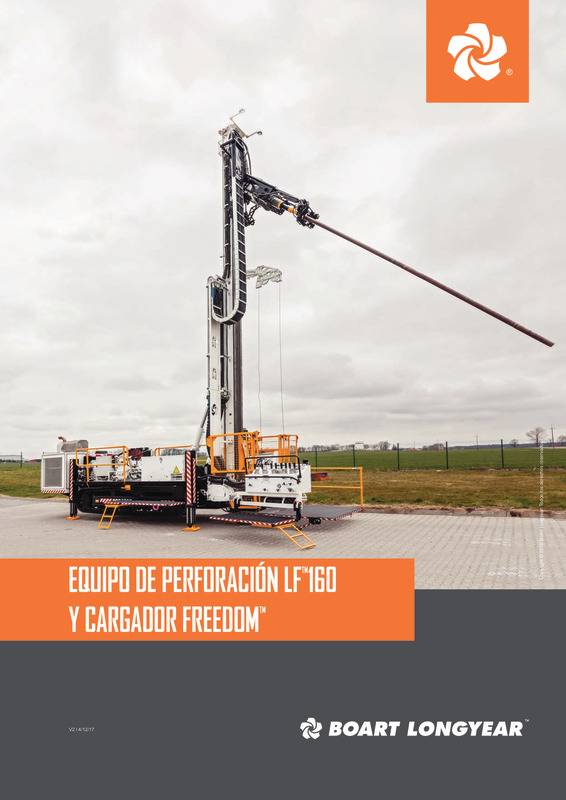

Spanish

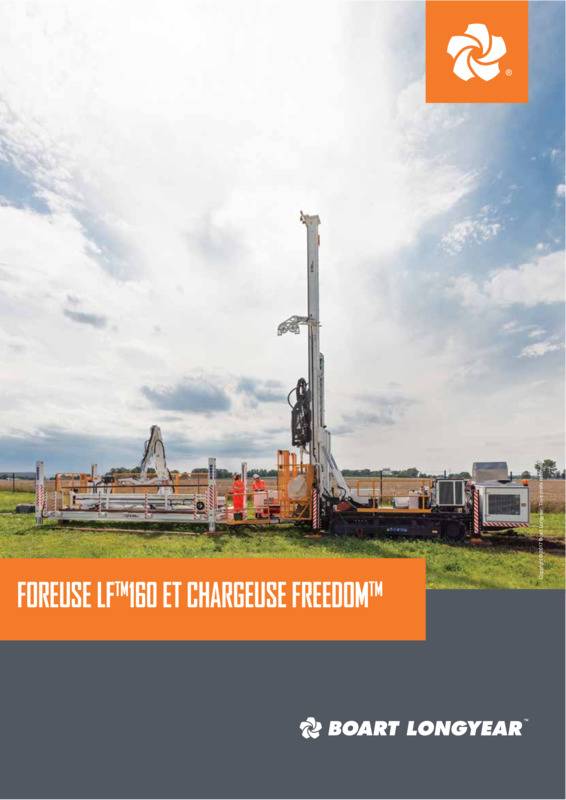

French
